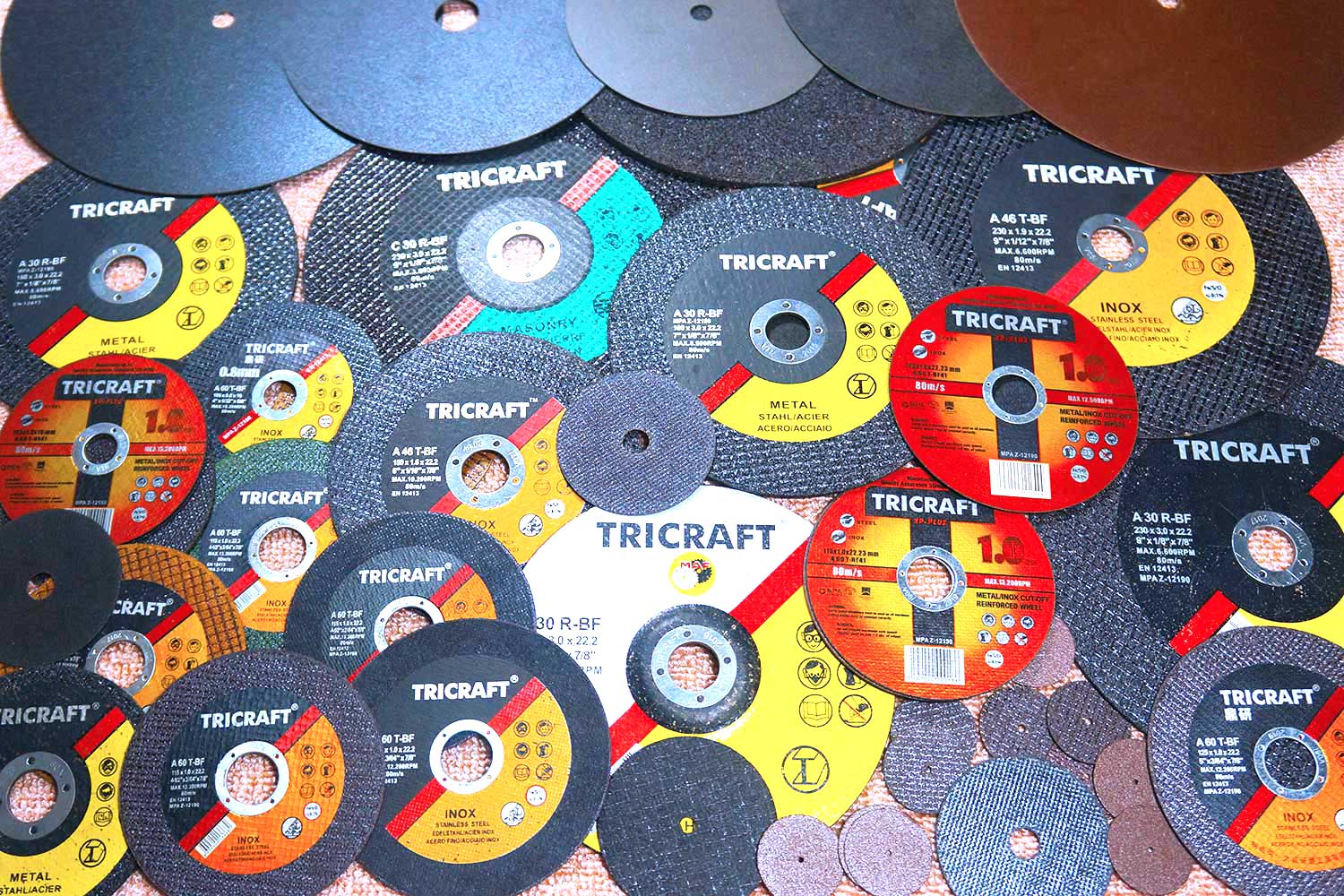

                                               TRICRAFT  TYPE41 & TYPE42  INOX & METAL CUTTING WHEELS & DISCS



                                                                 Features:

                                                        1.Excellent Quality, Stands Up To/Surpasses Similar Products From Major International Labels in Testing.

                                                   2.Use on ALL ferrous/non-ferrous metals.

                                                   3.Special Aluminum Oxide abrasives and imported resin ,offers the fastest longest lasting cutting on all steel and INOX .


                                                   4.Double reinforced with fiberglass layers to provide ultimate safety in a thin cutting wheel.

                                                   5.Without black papers on both size,get better cutting speed and cutting feeling.

                                                   6.Appearance of the wheels are clean and neat.

                                                  7.Fast cutting speed, you can use a smaller current to cut the materials, lighten the burden of operating, high efficiency

                                                  8.This Wheel is very thin, the cutting knife-edge is narrow, high utilization rate of steel .

                                                  9.Cutting dust is very few, get a good working environment .

                                                 1 0.Manufactured in accordance with German MPA Standards .

                                                 11.Exceed ANSI B7.1Safety Requirements




Wheel Size(D*T*H) Max Speed Outer Packing Carton Size
[inch] [mm] [R.P.M] [pcs/kg/ctn] cm
3″*3/64″*3/8″ 75*1*10 20100 320/5 19*18*11
4″*3/64″*5/8″ 100*1*16 15200 320/7 22*21*11
4″*1/16″*5/8″ 100*1.6*16 15200 320/11 22*21*21
4″*3/32″*5/8″ 100*2.5*16 15200 320/17 35*21*21
4″*1/8″*5/8″ 100*3.0*16 15200 320/20 38*21*21
41/2″*3/64″*7/8″ 115*1.0*22.2 13300 200/6 23*17*12
41/2″*1/16″*7/8″ 115*1.6*22.2 13300 200/9 26*23*12
41/2″*3/32″*7/8″ 115*2.5*22.2 13300 200/14 41*23*12
41/2″*1/8″*7/8″ 115*3.0*22.2 13300 200/16 49*23*12

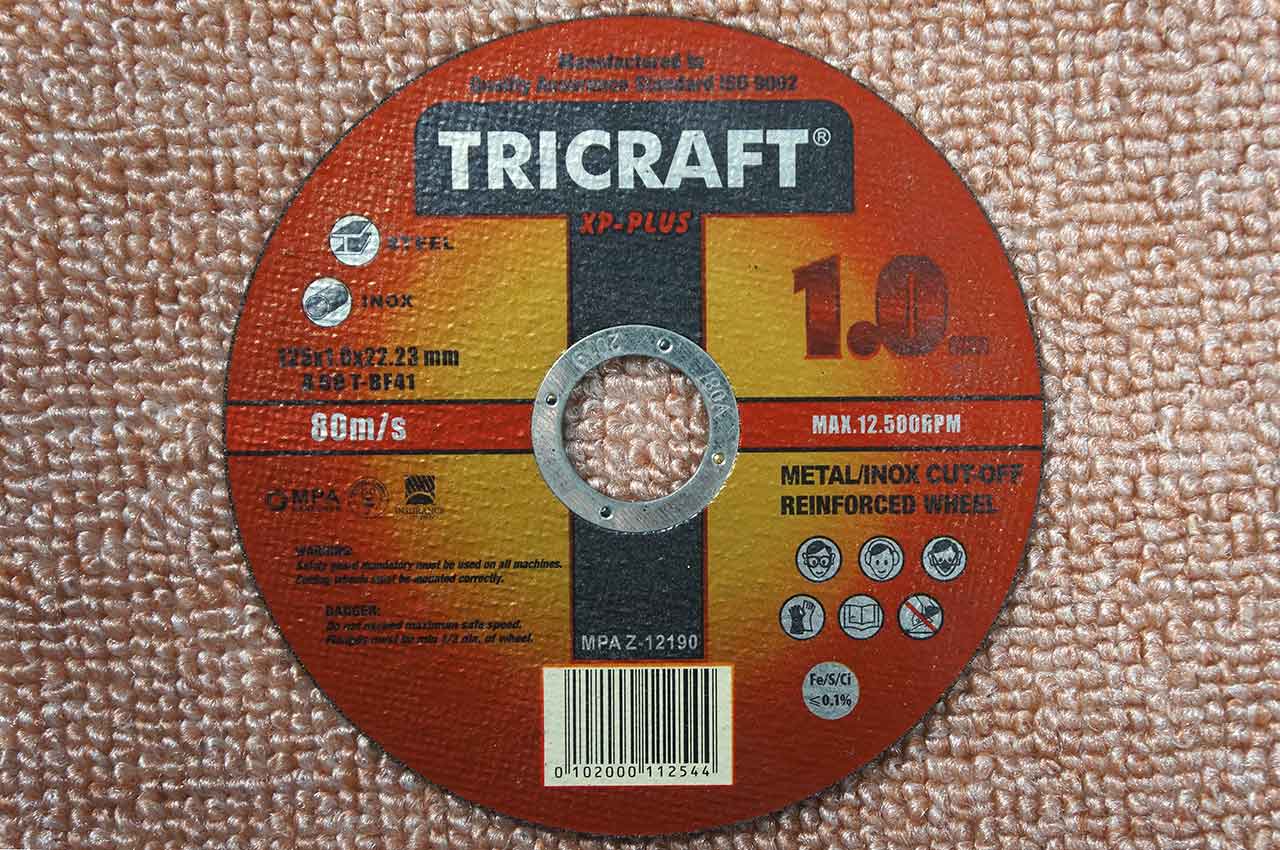

5″*3/64″*7/8″ 125*1.0*22.2 12200 200/7 26*17*13
5″*1/16″*7/8″ 125*1.6*22.2 12200 200/10 26*26*13
5″*3/32″*7/8″ 125*2.5*22.2 12200 200/15 41*26*13
5″*1/8″*7/8″ 125*3.0*22.2 12200 200/18 32*32*10
6″*1/16″*7/8″ 150*1.6*22.2 10200 200/14 32*32*15
6″*3/32″*7/8″ 150*2.5*22.2 10200 200/21 32*32*18
6″*1/8″*7/8″ 150*3.0*22.2 10200 200/24 31*19*19
7″*1/12″*7/8″ 180*1.9*22.2 8600 100/13 38*20*19
7″*3/32″*7/8″ 180*2.5*22.2 8600 100/16 38*20*19

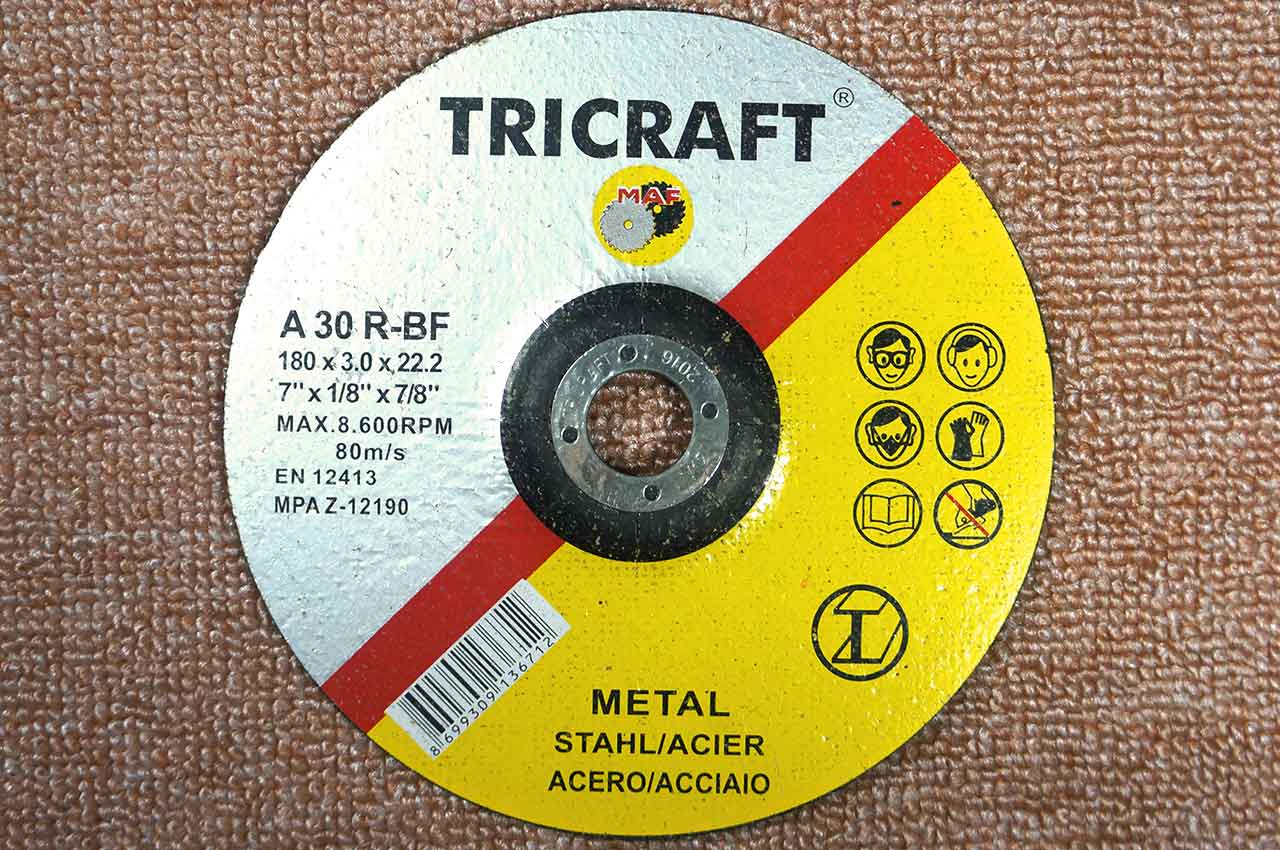

7″*1/8″*7/8″ 180*3.0*22.2 8600 100/19 38*24*19
9″*1/12″*7/8″ 230*1.9*22.2 6600 50/11 24*24*15
9″*3/32″*7/8″ 230*2.5*22.2 6600 50/13 24*24*20
9″*1/8″*7/8″ 230*3.0*22.2 6600 50/15 24*24*24

                                                          New Products!!  TRICRAFT INDUSTRY GRADE CUTTING WHEELS !!



       Cutting test with other brands products :

STAR ABRASIVES TEST REPORT
Date brand Specification Dia before test Dia after test weight before test weight after test THICKNESS(mm) material processed cuts/minutes time
2011.4.12 STAR TRICRAFT 355x2.8x25.4WA 1NET  356 238 634   2.8 50x50x2mm 107cuts 5-7s/cut


2011.4.12 NORTON 125X1X22T41INOX  125 75 29   1.12 304# dia 16 inox bar 20CUTS 3"25s
  KLINGSPOR 125X1X22T41INOX  125.5 119 30.5   1.13 304# dia 16 inox bar 20CUTS 3"55s
  STAR TRICRAFT 125X1X22T41INOX  125 118 32   1.3 304# dia 16 inox bar 20CUTS 3"10s

  FLEXOVIT 100X1X16T41INOX 100 57.5 19   1.1/1.1 304# dia 16 inox bar 30CUTS 8-9s/c
  METABO 105X1X16T41INOX 105 62 24   1.2/1.3 304# dia 16 inox bar 30CUTS 9-10s/c
2011.4.12 STAR TRICRAFT 105X1X16T41INOX 105 67 23   1.3/1.4 304# dia 16 inox bar 30CUTS 9-10s/c

            NOTEWe got many samples from all over the world , and test with them every day , include Norton , Metabo, 3M,Flexovit and so on , we will never stop the step of improving our quality , we also can make the wheels with your detailed requirement also can according your samples.

Follow are the test video of our 9 inch metal cutting wheel compare with Pferd 9 inch wheel .

                         Contact us today , and get the free samples !!
